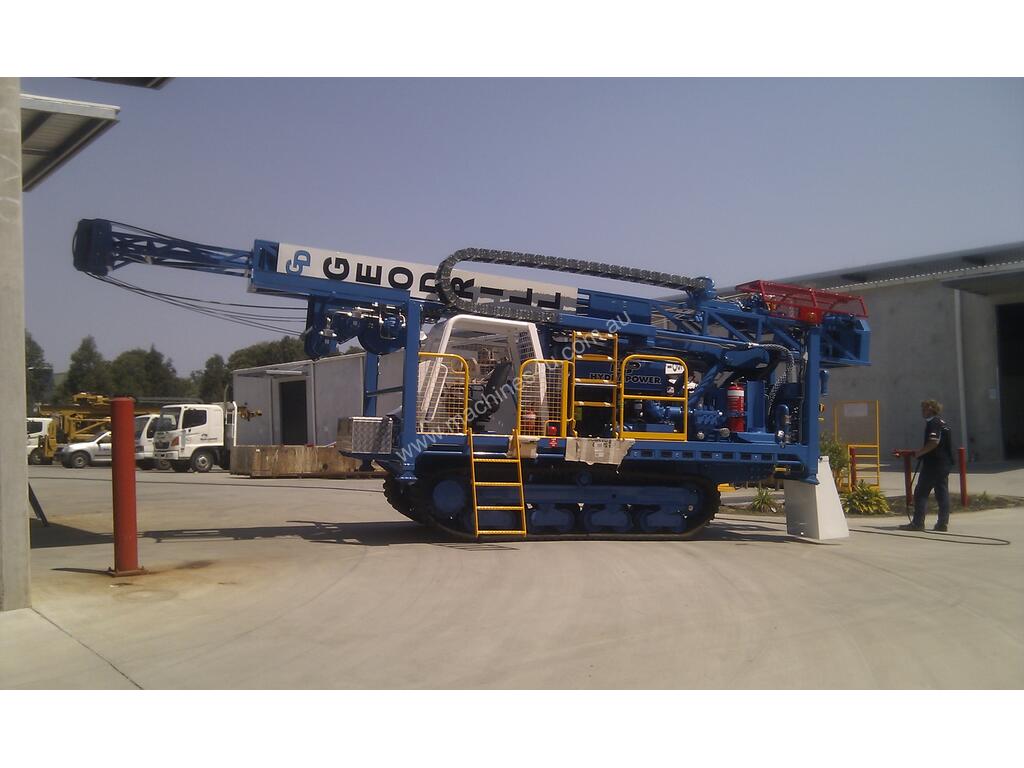

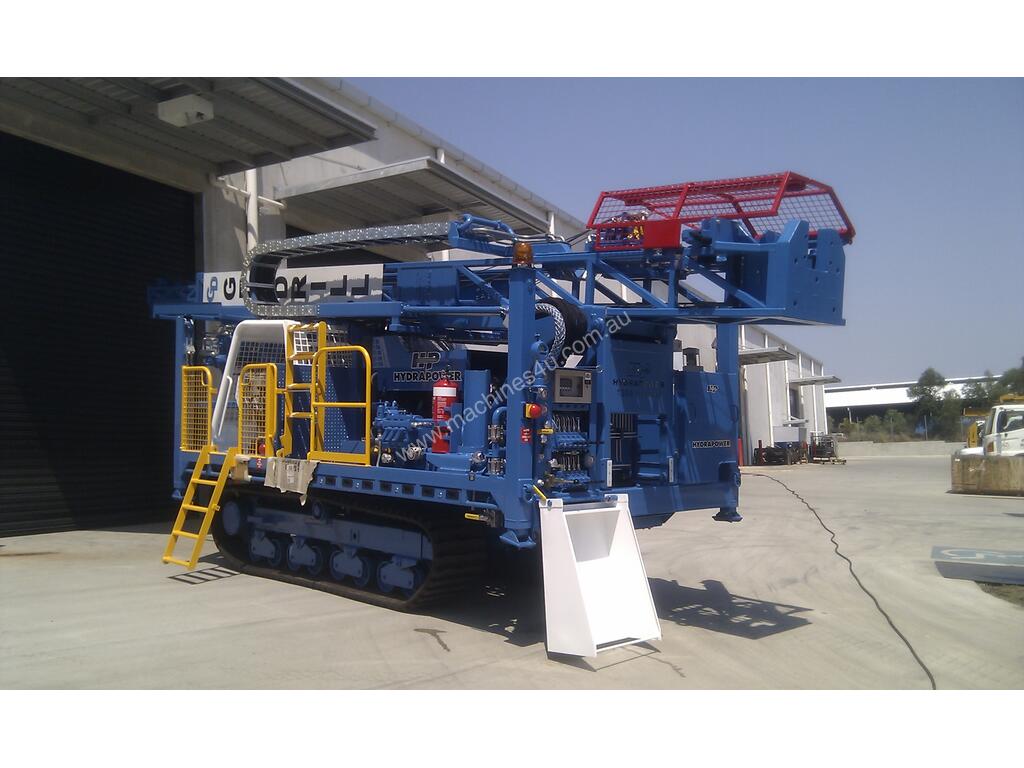

Scout Mark V Drill Rig

Brendale, QLD - Delivers Nationally

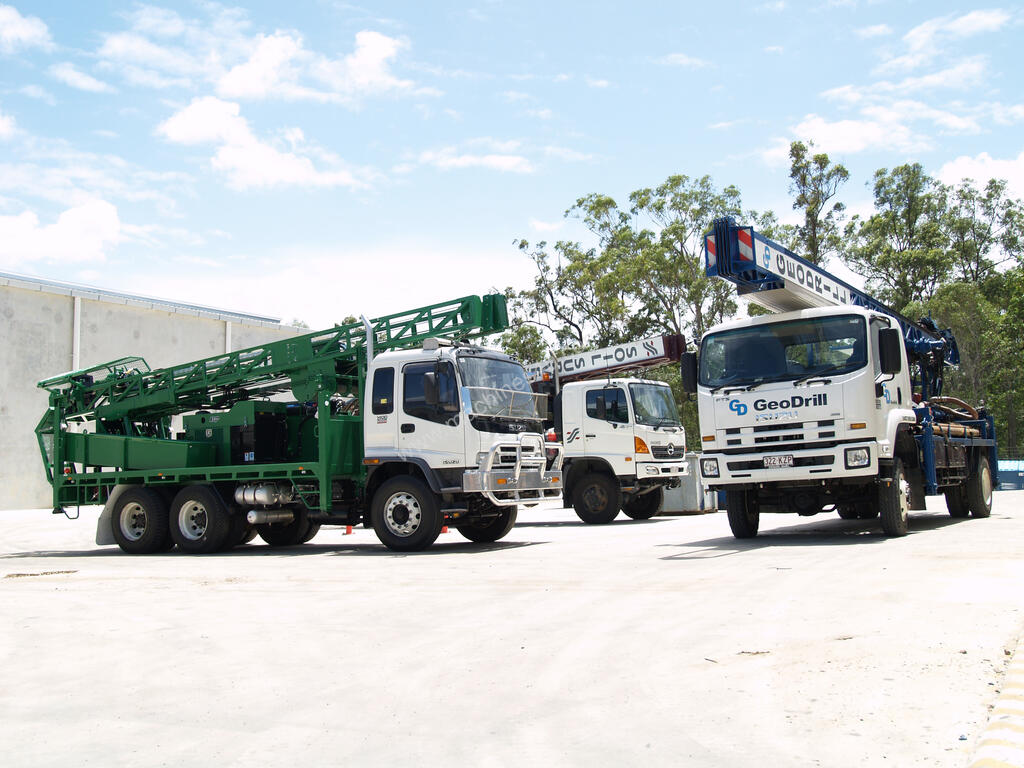

Recommended Base (Minimum)--- ->4 x 4 Truck with a 13 t GVM and a 4.5 m wheelbase

->Tracked Crawler with 6.3 t load capacity


Rig Engine --- ->4 cylinder Cummins CPAK-4BTA3.9-C turbo motor with 125 hp at 2200 rpm

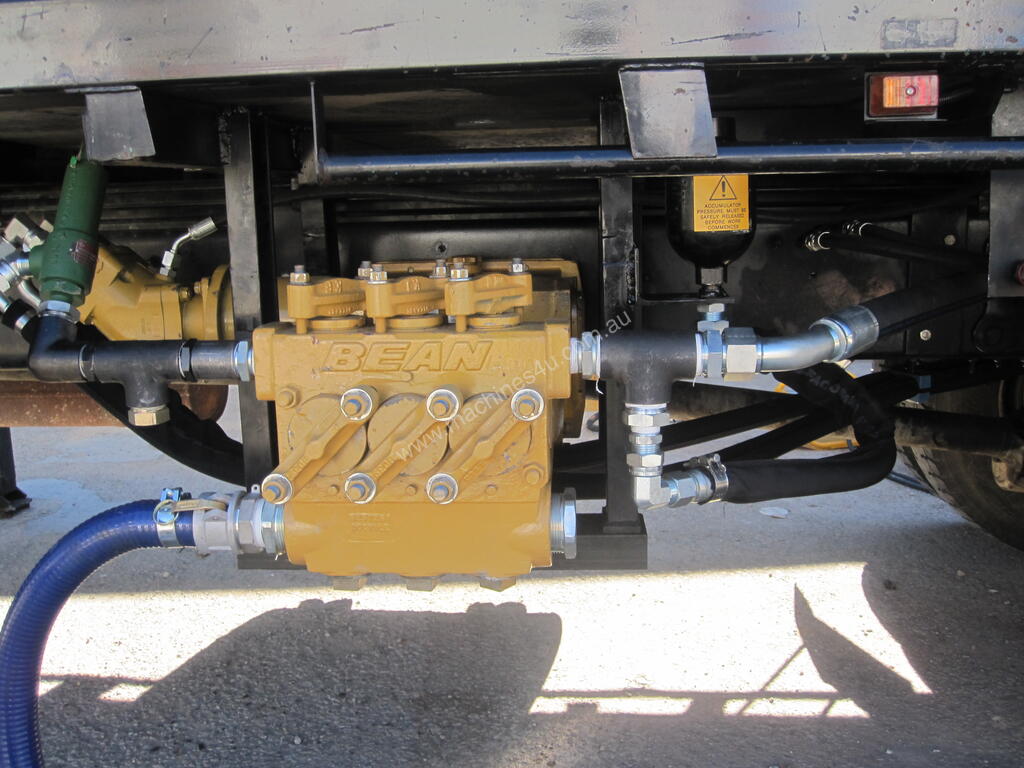

Rig Hydraulics--- ->Sauer Danfoss porportionally controlled control valves

->Sauer closed loop pump on Rotary Drive Sauer open loop pump on auxiliary functions

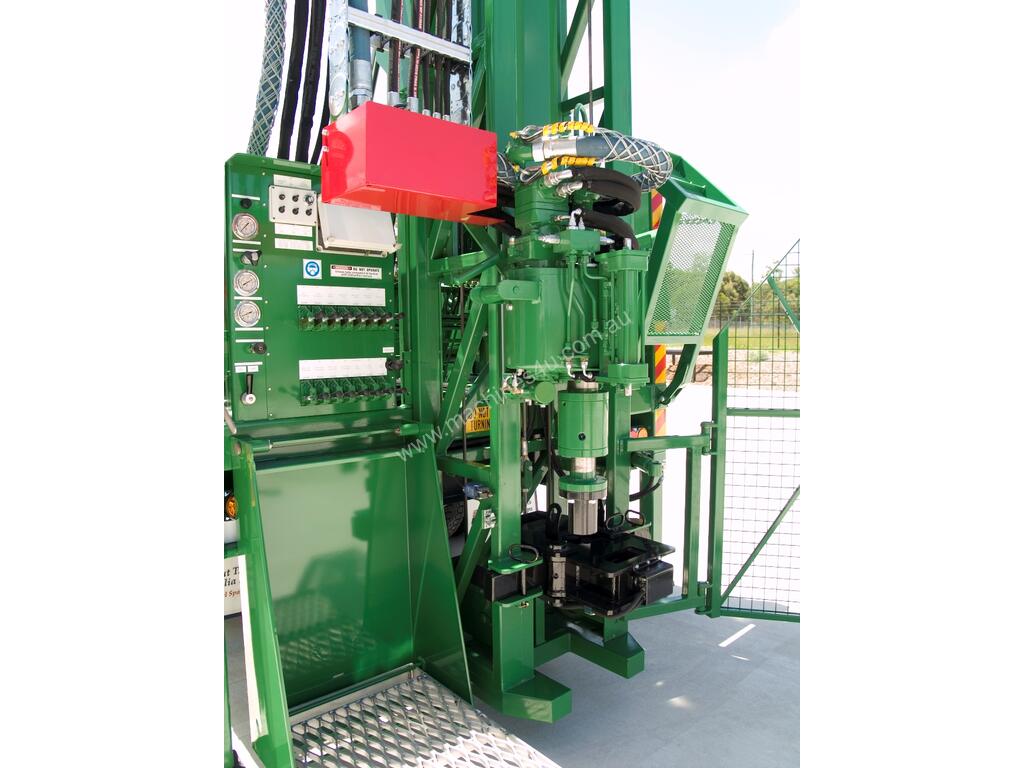

Rotary Drive--- ->Hydrapower Gearbox - Steel Casing with floating hollow spindle and hydraulic head lock and swing

->Two Speed, 0 - 150 rpm & 0 - 700 rpm

->Low speed torque to 2100 Nm, high speed torque to 474 Nm

Head Travel--- ->5.1 m standard, 6.8 m optional

Main Winch --- ->Maximum pull is 4200 kg

->Maximum line speed is 28 m/min

Wireline Winch--- ->(2) Two of in standard configuation

->Maximum pull is 780 kg

->Maximum line speed is 83 m/min

Pulldown--- ->Electrically controlled with dial for speed control

->Pull down capacity is 4400 kg

->Pull out capacity is 6500 kg

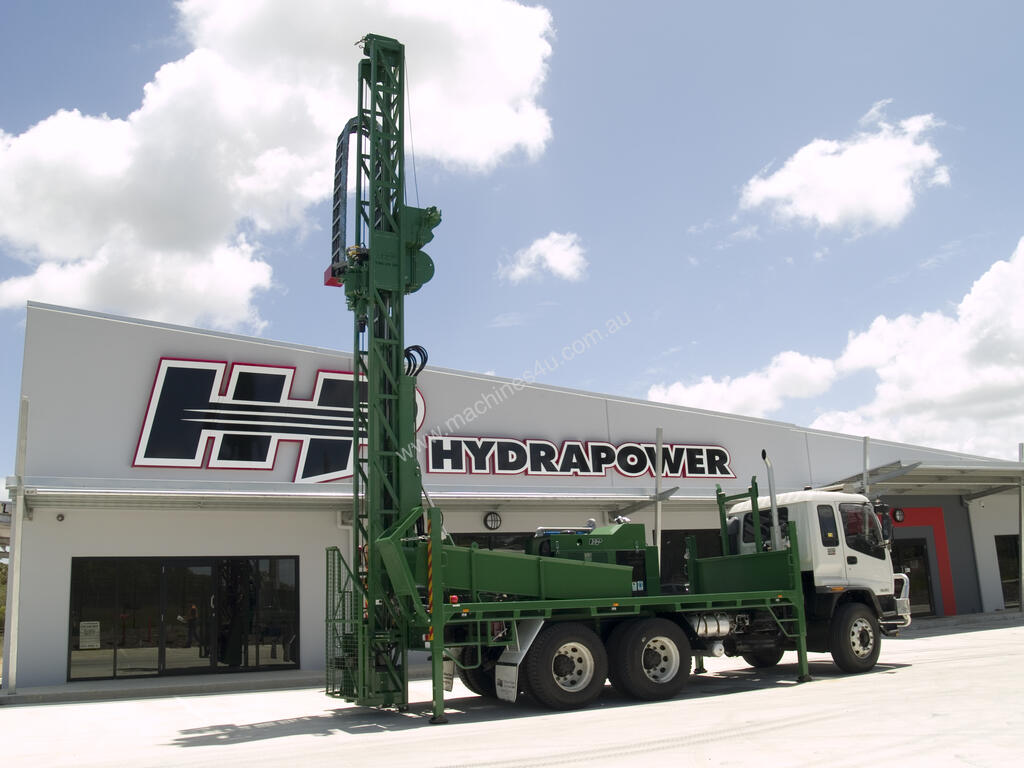

Mast:

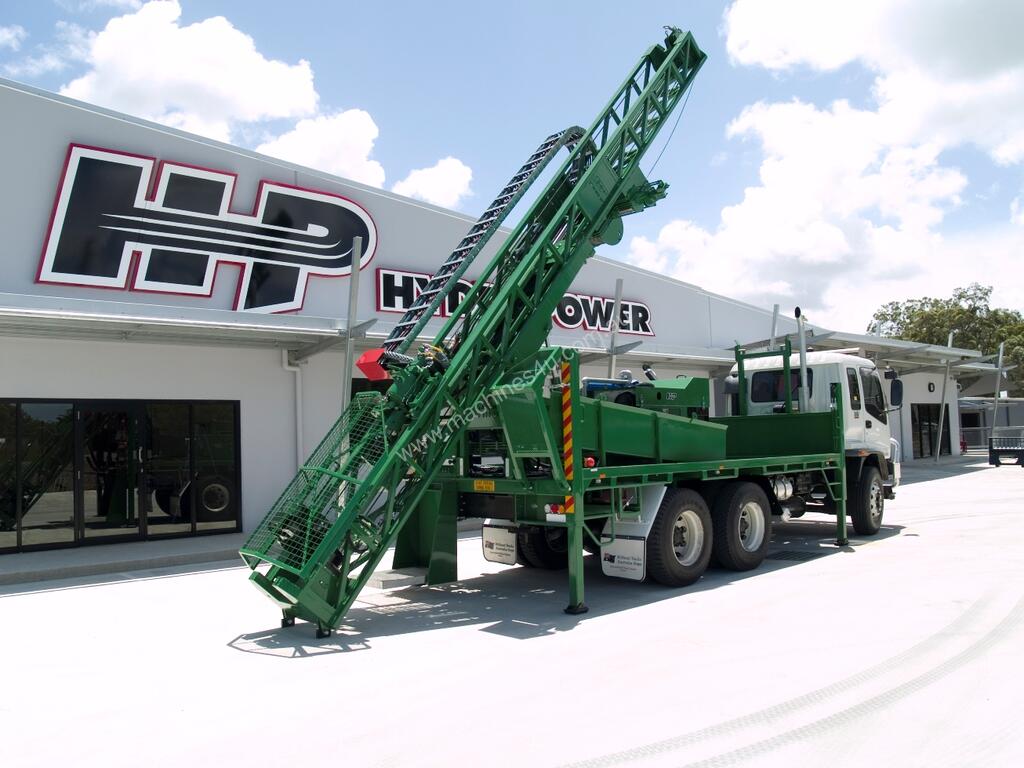

-Fitted with 1.8 m mast dump for angle drilling

-Standard length is 8.1 m, supplied with hydraulically operated breakout spanner

-Supplied with hydraulic circuti with quick-connect couplings for optional breakout table

Brakeout Table- Optional fixed or split type table


Rod/Auger Guard-Optional, can be fitted with hydraulic lockout on head rotation

Tool Cabinet -Optional

Rig Body- Supplied with operator's platform, (4) four stabilizer legs with burst valve protection and fuel tank. Rig body and mast painted in Hydrapower Red and Black

Toolkit- Flags for rear of mast, mast lock plates, parts and maintenance manual for rig and engine, and hydraulic pump test point pressure gauges
