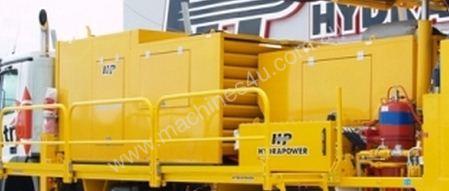

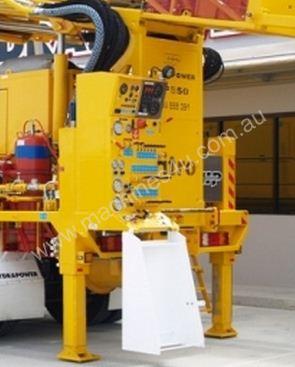

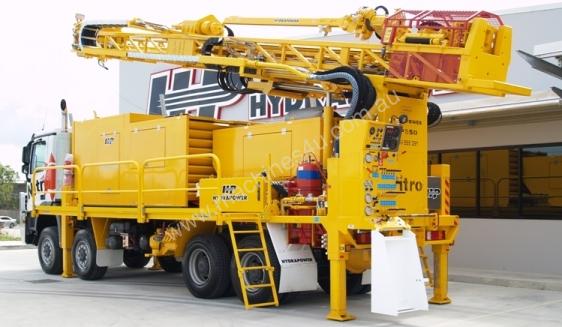

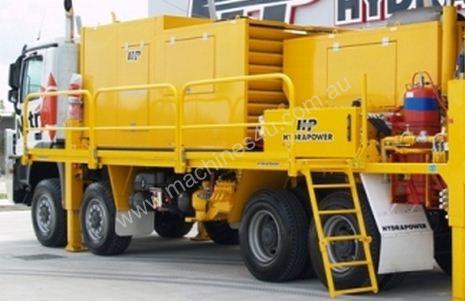

Hp850
Brendale, QLD - Delivers Nationally -
-
-
-
+2
Hp850 : Ask for Price
Recommended Base:-
*8 x 8 Truck with 24 t GVM bogie drive with diff-lock and cross lock
*Dependant on whether On-board ar is required.
Rig Engine - Standard Cummins (260 hp at 2500 rpm)
Rig Hydraulics:-
*Sauer Danfoss porportionally controlled control valves
*Sauer closed loop pump on Rotary Drive Sauer open loop pump on auxiliary functions
Rotary Drive:-
*Hydrapower Gearbox - Steel Casing with floating hollow spindle and hydraulic head lock and swing
*Variable Speed, 0 - 1400 rpm
*Low speed torque to 8700 Nm,
Head Travel- 7.0 m
Main Winch:-
*Maximum pull is 10,000 kg
*Maximum line speed is 60m/min
*Overspool protection device
Wireline Winch:-
*1400m with Auto Spooler
*Maximum pull is 2000 kg
*Maximum line speed is 140m/min
Pulldown:-
*Hydraulically controlled with dial for speed control
*Pull down capacity is 10,000 kg
*Pull out capacity is 16,500 kg

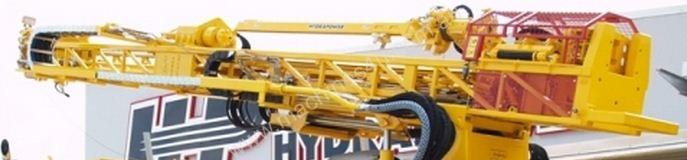

Mast:-
*Fitted with 2.0 m mast dump for angle drilling
*Standard length is 10 m, supplied with hydraulically operated breakout spanner and top pulley swivel
*Supplied with hydraulic circuti with quick-connect couplings for optional breakout table
Breakout Table- Optional split type table
Rod/Auger Guard- Optional, can be fitted with hydraulic lockout on head rotation
Rig Body- Supplied with operator's platform and offsider's platform, (4) four stabilizer legs with burst valve protection and fuel tank. Rig body and mast painted in Hydrapower Red and Black
Toolkit- Flags for rear of mast, mast lock plates, parts and maintenance manual for rig and engine, and hydraulic pump test point pressure gauges
